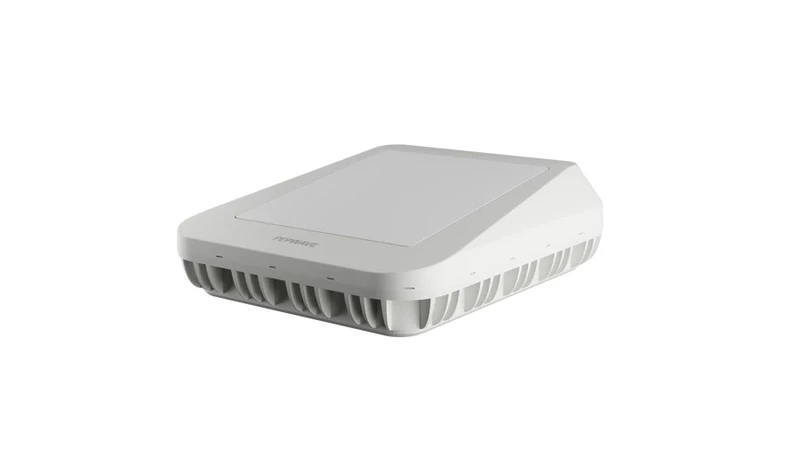

The Antenna MAX S combines 5G/LTE, Wi-Fi, GPS, an internal Peplink router bay, and a purpose-built Starlink Mini dock in one weatherproof rooftop enclosure — cellular and satellite from a single mount.
Cellular and satellite together: The Starlink Mini docking bay means a command vehicle keeps working past the edge of cellular coverage, with both paths available to SpeedFusion for automatic failover.
Antenna system
- 4×4 MIMO cellular, 617 MHz – 6000 MHz (5G and LTE)
- 2×2 dual-band Wi-Fi
- Integrated GPS receiver
- Purpose-built Starlink Mini docking bay
Router mounts inside
- Secure internal mounting for BR1 Mini series
- BR1 Pro 5G
- Transit Duo Pro
Housing the router inside the enclosure removes long coaxial runs, and the signal loss that comes with them — the practical gain is usable bandwidth at the roof rather than attenuated bandwidth at the dash.
Installation requirements
Requires 802.3bt PoE at 90W. A 90W PoE injector or splitter kit is mandatory for full operation and is not included — confirm your power budget before ordering, and we can quote the kit alongside it.
| SKU | ANT-MAX-S |
| Brand | Peplink |
| Type | Antenna |
| Cellular | 4×4 MIMO, 617–6000 MHz |
| Wi-Fi | 2×2 dual-band |
| GPS | Integrated receiver |
| Satellite | Starlink Mini docking bay |
| Router bay | BR1 Mini series, BR1 Pro 5G, Transit Duo Pro |
| Power | 802.3bt PoE, 90W required (kit not included) |
| Housing | Weatherproof, UV-resistant, IP-rated |
Sold and configured by Kentucky Rugged Technology Solutions — a Panasonic Toughbook Authorized Prime Dealer and Kentucky State Contract vendor (MA24*214). Every unit is imaged, tested, and supported in-house.
