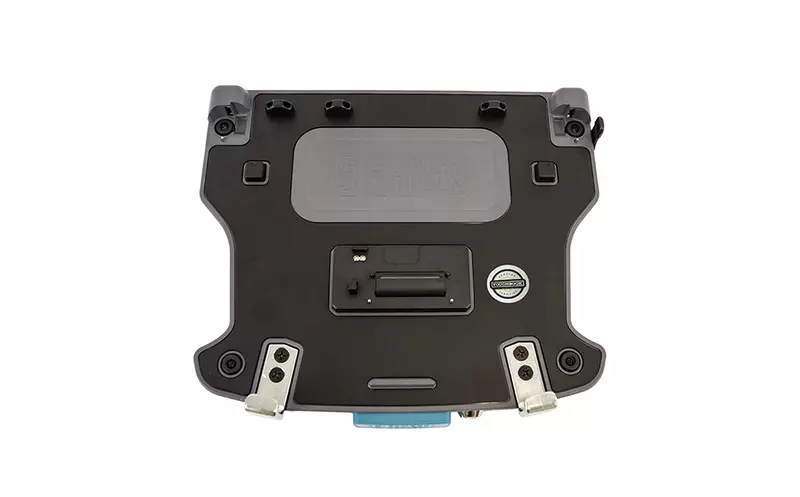

A dual pass-through vehicle dock for the Toughbook FZ-56 and FZ-55, routing two antenna connections through to roof-mounted systems while delivering modern USB-C connectivity and gigabit Ethernet to the docked computer.
Dual antenna pass-through: Two SMA connections route the computer’s WWAN and GPS signals to roof-mounted antennas — the configuration you want when cellular and location accuracy have to work from inside a metal vehicle body.
Ports and connectivity
- 1× USB-C (front, quick access)
- 2× USB-C (rear)
- 1× USB-A
- 1× Gigabit Ethernet (RJ-45)
- 2× SMA antenna pass-through
- 15 VDC power input
Built for the environment
Vehicle docks live a hard life — constant vibration, temperature swings, and hundreds of dock and undock cycles a month. This one is built for it, with a mechanical locking latch that holds the device through hard braking, rough road, and emergency driving, and a quick-release that lets the user pull the computer and go.
Installation and fitment
Integrates with the Gamber-Johnson pedestals, motion attachments, and vehicle bases, so it drops into an existing fleet mounting standard rather than forcing a new one. KRTS can spec the complete mount stack — base, pole, and motion attachment — to match your vehicle platform.
| SKU | GJ-56LVDL2 |
| Brand | Gamber-Johnson |
| Type | Vehicle Dock |
| Compatibility | Panasonic Toughbook FZ-56 and FZ-55 |
| Antenna pass-through | Dual (2× SMA) |
| Power input | 15 VDC |
Sold and configured by Kentucky Rugged Technology Solutions — a Panasonic Toughbook Authorized Prime Dealer and Kentucky State Contract vendor (MA24*214). Every unit is imaged, tested, and supported in-house.
