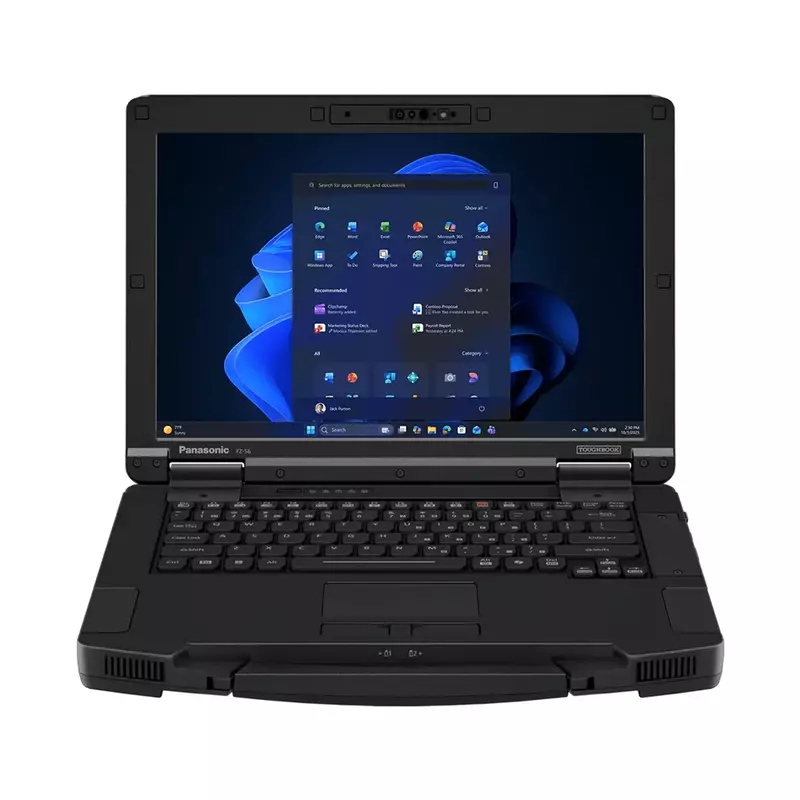

The Toughbook 56 is Panasonic’s next-generation rugged 14″ laptop — the successor to the proven FZ-55 — rebuilt around an AI-ready Intel Core Ultra platform, a lighter magnesium chassis, and Wi-Fi 7. This configuration is the fully connected build: 5G EM9291, integrated GPS, and COM Splitter routing, purpose-made for public safety and mobile operations that depend on real-time data in the field.
Fully connected: 5G Sub6 + C-band coverage, GPS positioning, and BIOS-selectable Dual Pass COM Splitter routing — AVL, mapping, dispatch, and CAD/RMS on one device.
Connectivity & positioning
- 5G EM9291 modem — Sub6 and C-band for high-bandwidth field coverage
- Integrated GPS for accurate, continuous location performance
- COM Splitter with Dual Pass, BIOS selectable, for GPS routing and expansion
- Intel Wi-Fi 7 and Bluetooth for fast in-station and hotspot connectivity
These capabilities directly support AVL and real-time fleet tracking, mapping and GIS workflows, evidence capture, and dispatch and situational-awareness platforms.
Next-generation performance
The Intel Core Ultra 5 235H vPro processor delivers 14 cores and up to 5.0 GHz, with a dedicated AI Boost NPU for on-device processing at the edge. With 16 GB of DDR5 memory and a 512 GB OPAL SSD, you get fast boot times, smooth multitasking, and enterprise-grade encrypted storage out of the box.
Built to work anywhere
Certified to MIL-STD-810H and IP53 with added MIL-STD-461G EMI protection, the reinforced magnesium chassis shrugs off drops, vibration, dust, and weather across a −29°C to 60°C operating range. The 14″ WUXGA 1000-nit touchscreen—protected by Corning Gorilla Glass 3—stays readable in direct sunlight and takes glove or stylus input, while the emissive backlit keyboard keeps night and in-vehicle work fast.
Modular and upgrade-ready
The FZ-56’s modular architecture provides three xPAK expansion areas plus user-replaceable battery, RAM, and caged SSD. Expansion options (sold separately) include:
- Second hot-swap battery (up to 24 hrs total runtime)
- Additional I/O and 2.5G LAN ports
- Smartcard and barcode scanning modules
- Extra storage
User-replaceable components keep fleets in service and extend lifecycle value across large deployments.
| SKU | FZ-56BZ00UBM |
| Processor | Intel Core Ultra 5 235H vPro — 14-core, up to 5.0 GHz, 18MB cache, AI Boost NPU, AMT |
| Display | 14″ WUXGA 1920×1200, 1000-nit touchscreen, Gorilla Glass 3 |
| Memory | 16 GB DDR5 (user-replaceable) |
| Storage | 512 GB OPAL SSD, caged & user-replaceable |
| Mobile broadband | 5G EM9291 (Sub6 + C-band) |
| GPS | Integrated GPS |
| Expansion | COM Splitter — Dual Pass, BIOS selectable |
| Wireless | Intel Wi-Fi 7, Bluetooth |
| Camera | 5MP IR webcam with mic — Windows Hello support |
| Keyboard | Emissive backlit, spill-resistant |
| Battery | Standard battery (second battery optional, hot-swap) |
| Durability | MIL-STD-810H, MIL-STD-461G, IP53 — −29°C to 60°C |
| Security | TPM 2.0, Secured-core PC, Intel Hardware Shield |
| Operating System | Windows 11 Pro |
| Warranty | Flat 3-Year Panasonic Warranty |
Sold and configured by Kentucky Rugged Technology Solutions — a Panasonic Toughbook Authorized Prime Dealer and Kentucky State Contract vendor (MA24*214). Every unit is imaged, tested, and supported in-house.
