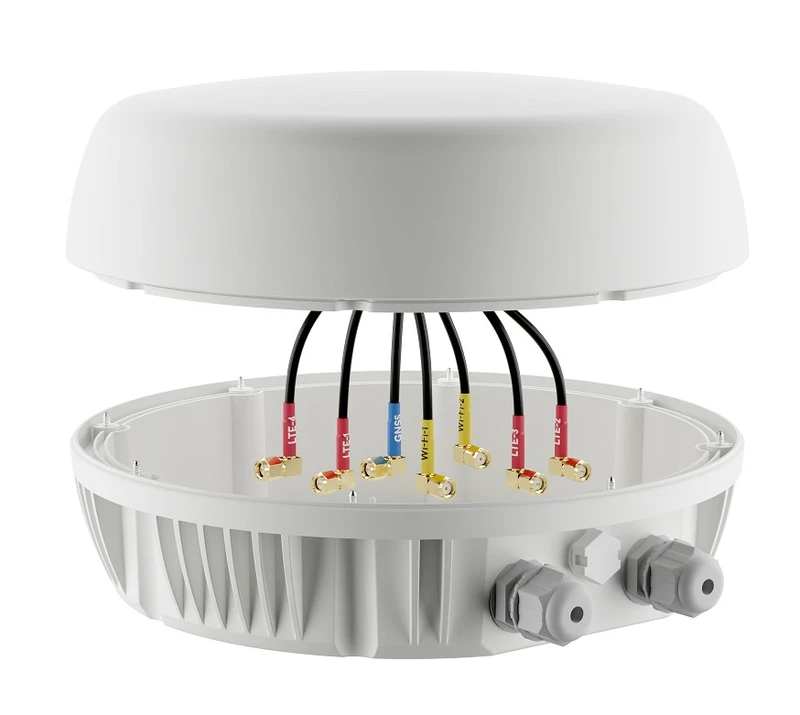

The Antenna MAX is an IP67 rooftop enclosure that houses the Peplink router inside the antenna itself — eliminating cable loss and delivering the strongest 5G, LTE, Wi-Fi, and GPS performance the hardware is capable of.
Zero cable loss: Every foot of coax between antenna and router costs signal. Putting the router in the enclosure removes that run entirely and moves the Ethernet backhaul downstream, where distance does not degrade performance.
Antenna system
- 4×4 MIMO 5G-ready cellular
- 2×2 Wi-Fi antennas plus 1× GPS receiver
- Wideband 600–6000 MHz including Band 71
- Ethernet-based backhaul for long-distance runs
Built for exposure
IP67 UV-resistant housing rated against moisture, salt, and corrosion — specified for marine and coastal deployments as much as vehicle rooftops. Mounts to surface, wall, pole, or deck, with the L-Mount set included.
| SKU | ANT-MAX |
| Brand | Peplink |
| Type | Antenna |
| Cellular | 4×4 MIMO, 600–6000 MHz incl. Band 71 |
| Wi-Fi | 2×2 |
| GPS | Integrated receiver |
| Housing | IP67, UV-resistant, salt and corrosion resistant |
| Mounting | Surface, wall, pole, deck — L-Mount set included |
| Backhaul | Ethernet |
Sold and configured by Kentucky Rugged Technology Solutions — a Panasonic Toughbook Authorized Prime Dealer and Kentucky State Contract vendor (MA24*214). Every unit is imaged, tested, and supported in-house.
