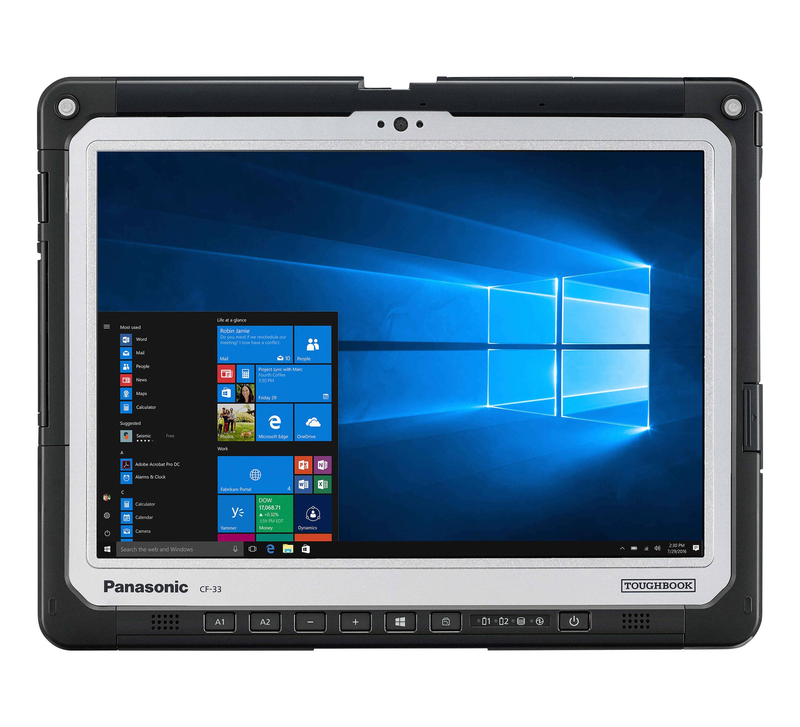

Panasonic Toughbook CF-33 — i5 / 16GB / 512GB — 5G, DGPS, Barcode Reader, Smart Card, Long-Life Battery
The most fully equipped CF-33 build — 5G, differential GPS, integrated barcode reader, smartcard reader, and long-life hot-swap batteries in one fully rugged 12″ detachable 2-in-1.
- Intel i5-1345U vPro · 16GB · 512GB OPAL SSD
- 12″ QHD gloved touch + digitizer, sunlight-readable
- 5G EM9190 (Sub6 + C-band) · DGPS · Wi-Fi 6E
- Integrated 1D/2D barcode reader · contactless smartcard reader
- Long-life dual batteries · MIL-STD-810H · IP65 · 3-yr warranty
SKU: CF-33YAAFMBM
Share :
The Toughbook CF-33 MK4 is a fully rugged detachable 2-in-1, and this is the top of the range: 5G broadband, differential GPS, an integrated 1D/2D barcode reader, a contactless smartcard reader, and long-life hot-swap batteries. Every capability the platform offers, in one unit.
Connectivity, positioning & scanning
- 5G EM9190 — Sub6 and C-band for broad, high-bandwidth coverage
- Differential GPS for high-accuracy location tracking
- Integrated 1D/2D barcode reader for IDs, evidence, equipment tags, and inventory
- COM Splitter with dual-pass antenna support (Ch1: WWAN / Ch2: GPS)
- Contactless smartcard reader for secure authentication
Performance you can rely on
The Intel Core i5-1345U vPro processor delivers responsive performance for CAD/RMS, GIS, digital forms, diagnostics, and dispatch platforms. The 12″ QHD 2160×1440 display stays readable in direct sunlight and accepts glove or digitizer-pen input for signatures, sketches, and field reporting. With 16 GB of RAM and a 512 GB OPAL SSD, you get fast boot times, smooth multitasking, and encrypted storage out of the box.
Built to work anywhere
Certified to MIL-STD-810H and IP65, the CF-33 stands up to drops, shock, vibration, rain, dust, and temperature extremes. Dual hot-swappable batteries let crews swap power without shutting down — the difference between a full shift and a dead device at hour six.
Modular and upgrade-ready
The CF-33 platform is built to be tailored and serviced in the field. Options (sold separately unless noted) include:
- Detachable keyboard base for tablet or full laptop operation
- User-replaceable battery, RAM, SSD, and keyboard
- Vehicle dock compatibility (Havis, Gamber-Johnson)
- Expanded storage support up to 2TB
- Smartcard, fingerprint, and NFC authentication options
User-replaceable components keep fleets in service and extend lifecycle value across large deployments.
Note: This configuration includes a rear bump-out, which may limit compatibility with certain vehicle docking stations. Confirm dock fitment before ordering.
| SKU | CF-33YAAFMBM |
| Processor | Intel Core i5-1345U vPro — up to 4.7 GHz, AMT |
| Display | 12.0″ QHD 2160×1440, gloved multi-touch + digitizer |
| Memory | 16 GB RAM |
| Storage | 512 GB OPAL SSD |
| Mobile broadband | 5G EM9190 (Sub6 + C-band) |
| GPS | DGPS (Differential) |
| Data capture | Integrated 1D/2D barcode reader |
| Authentication | Contactless smartcard reader |
| Expansion | COM Splitter — Dual Pass (Ch1: WWAN / Ch2: GPS) |
| Wireless | Intel Wi-Fi 6E, Bluetooth |
| Battery | Long-life dual hot-swappable batteries |
| Cameras | 2MP IR webcam (Windows Hello) + 8MP rear camera |
| Form factor | Fully rugged detachable 2-in-1 |
| Durability | MIL-STD-810H, IP65 |
| Security | TPM 2.0 |
| Operating System | Windows 11 Pro |
| Warranty | 3-Year Panasonic Warranty |
Sold and configured by Kentucky Rugged Technology Solutions — a Panasonic Toughbook Authorized Prime Dealer and Kentucky State Contract vendor (MA24*214). Every unit is imaged, tested, and supported in-house.
